Streamed Data

• 4 digital inputs (level, frequency, counter) - 100 SPS
• 8 analog input channels with IEPE - 16 bit, 20 kSPS, ±2.5 V / ±5 V or ±10 V, 100 blocks per second
• 3-axis acceleration up to ±4 g - 100 SPS
• 3-axis angular rate up to 500 dps, 100 SPS
• Mechanical shock up to 32g, 100 SPS
• All data is timestamped

Technical Specifications

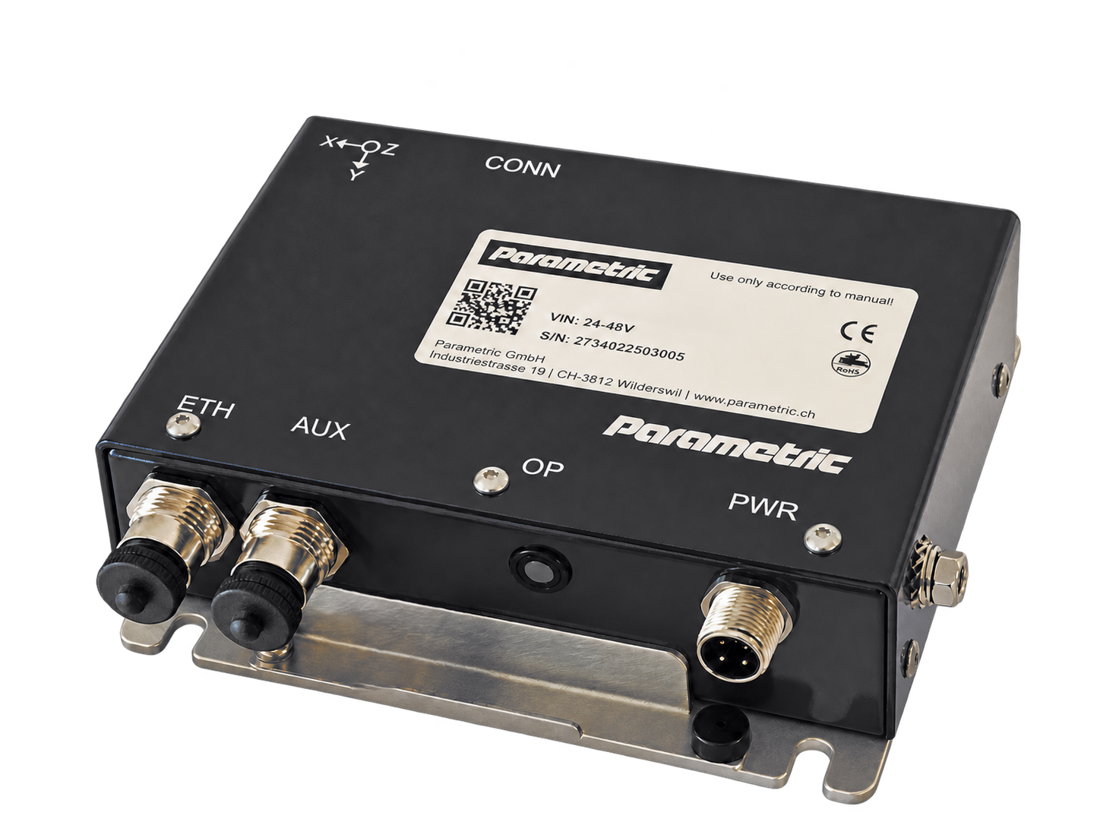

• IP40 enclosure - sturdy, vibration-resistant sheet-metal housing for installation in vehicles
• EN50155
• Operating temperature -40 to 85 °C
• D-Sub 78 connector for a stable connection, various gain factors available
• 4 isolated digital inputs
• 2 relays for switching up to 1 A
• 8 isolated analog inputs ±10 V with gain factor 1/2/4, 20 kSPS
• 8-channel IEPE, switchable, with isolated 24 V supply
• Ethernet streaming port M12 D-coded
• USB client configuration port USB-C (behind service flap)
• Power supply variants for all rail and vehicle supply voltages
• Various streaming protocols available

Typical Applications

• Real-time streaming of vibration, acoustic and other analog signals to an AI edge computer
• Feeding existing analysis and control systems with high-resolution measurement data
• Telemetry via API
• Switching of digital outputs by commands from the external device

Your Benefits

• Low latency from sensor to analysis
• Flexible choice of the receiving system - MEC4000 or an existing system
• Rugged, certified hardware for rail and vehicle environments
• Fits every power supply - variants for all rail and vehicle supplies
