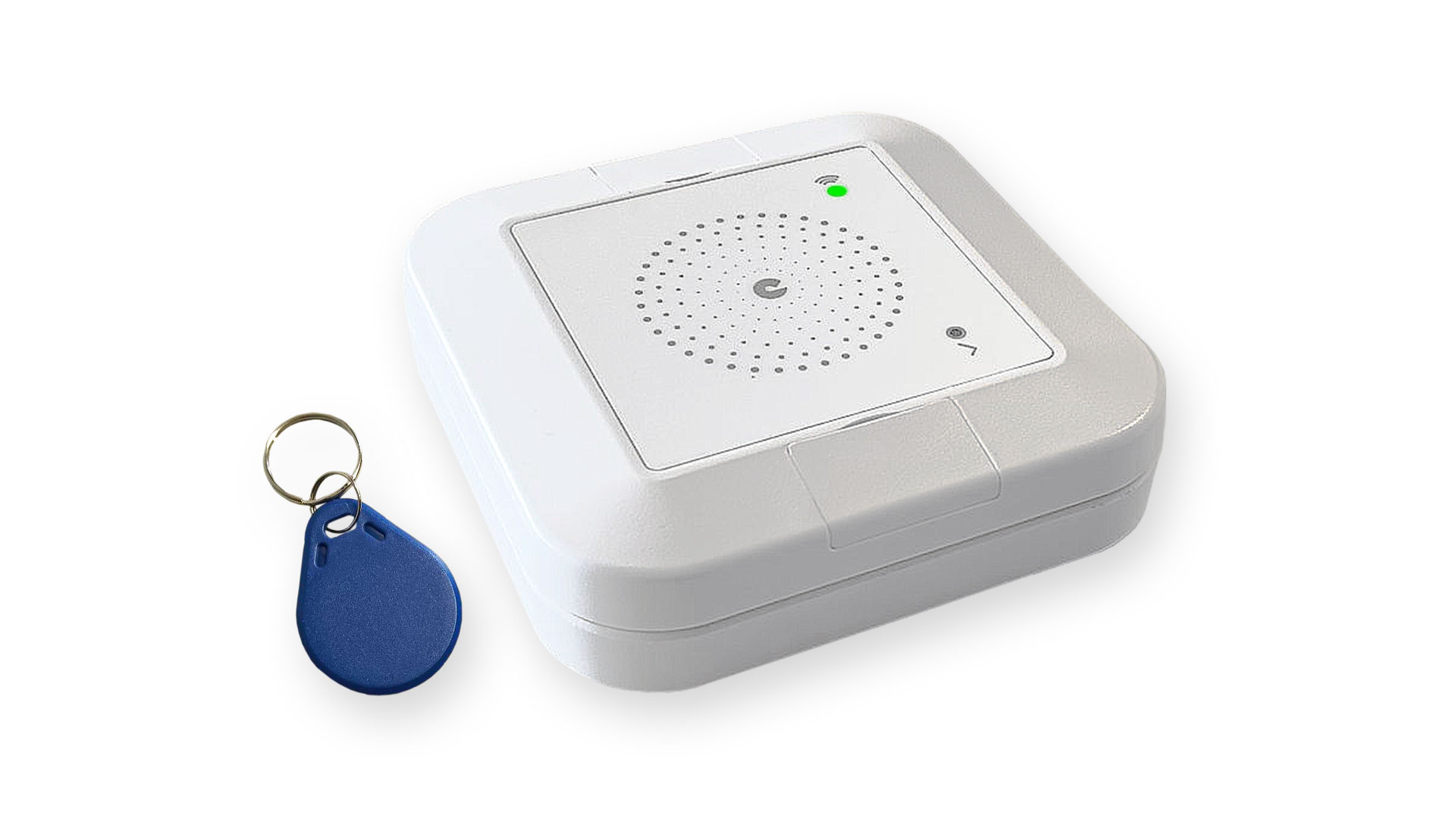

RDR NFC Event Recorder

---

The RDR NFC Reader is a compact, wireless sensor designed for use in Parametric’s RET System, which is applied in railway and infrastructure optimisation.
It enables simple recording and timestamping of manual actions – without integration, cabling, or external infrastructure.

Operating Principle

The reader is installed in vehicles, on infrastructure components, or in depots. By reading NFC tags, manual operations or events can be captured with a precise timestamp.
These data are automatically transmitted via LoRaWAN to the RET Analysis Software, where they are used for validating and tracking measures.

This allows operators to understand if, when, and how a specific measure was carried out and what influence it had on system behaviour – all without any integration into existing systems.

Typical Use Cases

• Bogie exchange
• Wheel reprofiling
• Lubrication processes
• Fault detection during operation
• Vehicle in depot or service mode

Extended Functions

Optionally, the RDR NFC Reader provides digital inputs and outputs:

• Inputs for connecting external buttons or sensor signals
• Outputs that can be controlled via LoRaWAN downlinks (e.g. to trigger alarm lights or acoustic indicators)

Note: An external power supply is required for operating the digital I/Os.

• Dimensions: approx. 10 × 10 × 23 cm
• Weight: aprox. 235 g
• Radio Standard: LoRaWAN 868 MHz (EU) / 915 MHz (US)
• Power Supply: 4 × AAA batteries or external power (depending on model)
• Operating Mode: Battery-powered, fully autonomous
• NFC Tags: Supports standard NFC cards
• Accessories: NFC cards and holders available in various colours
• Digital I/Os: Optional: 2 outputs + 1 input (with external power supply 5–40 V)

• RDR-EU868: Battery-powered standard version for outdoor use
• RDR-EU868-OD: Version with external power supply and cable feed-through
• RDR-EU868-XIO: Extended outdoor version with 2 digital outputs and 1 digital input (external power 5–40 V)
